480V 3-Phase Breaker Panel | High-Voltage Three-Phase Panels

A 480V three-phase system uses either 3 or 4 wires depending on configuration. A 480V delta system uses 3 wires (three hot conductors). A 480Y/277V wye system uses 4 wires — three hot conductors and a neutral. A fifth grounding conductor is typically added for safety per NEC requirements, making most practical installations 4–5 wire systems.

The standard nominal voltage for three-phase commercial and industrial service in the United States is 480V, not 408V. The 480Y/277V configuration is the most common three-phase wye arrangement. 408V is not a recognized standard voltage. Voltage readings near that value may indicate measurement error, significant voltage drop, or a non-standard configuration.

A 480V three-phase system is a high-voltage electrical distribution configuration that delivers power across three conductors, each carrying 480V relative to the other phases. It is the standard for heavy commercial and industrial loads in the US, powering HVAC equipment, motors, large lighting systems, and switchgear up to 4000A in facilities where high power density is required.

DEI Power's 480V three-phase panels are available from 400A to 4000A, including 400A, 600A, 800A, 1000A, 1200A, 1600A, 2000A, 2500A, 3000A, and 4000A ratings. This range covers small commercial service entrances through large industrial switchgear and switchboard applications. Panelboards, switchboards, switchgear, SES, and remote power panels are all available across this amperage spectrum.

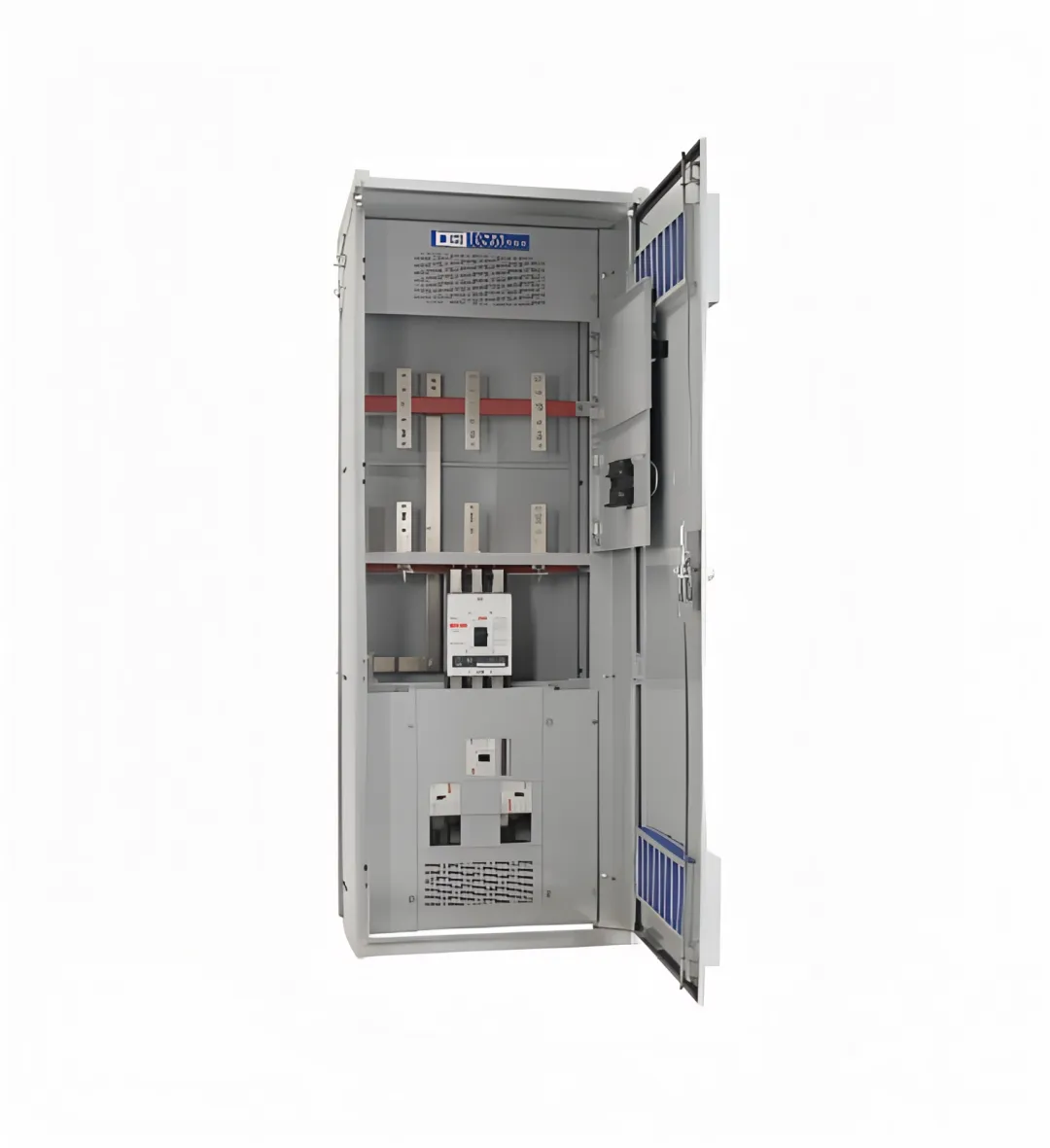

Panelboards are compact enclosures distributing branch circuits, typically up to 1200A. Switchboards are larger, free-standing assemblies handling higher amperages with more accessible components for maintenance. Switchgear offers the highest protection level with individually enclosed breakers and is used for critical or utility-grade applications. All three are available in 480V configurations from DEI Power with UL 891 certification.

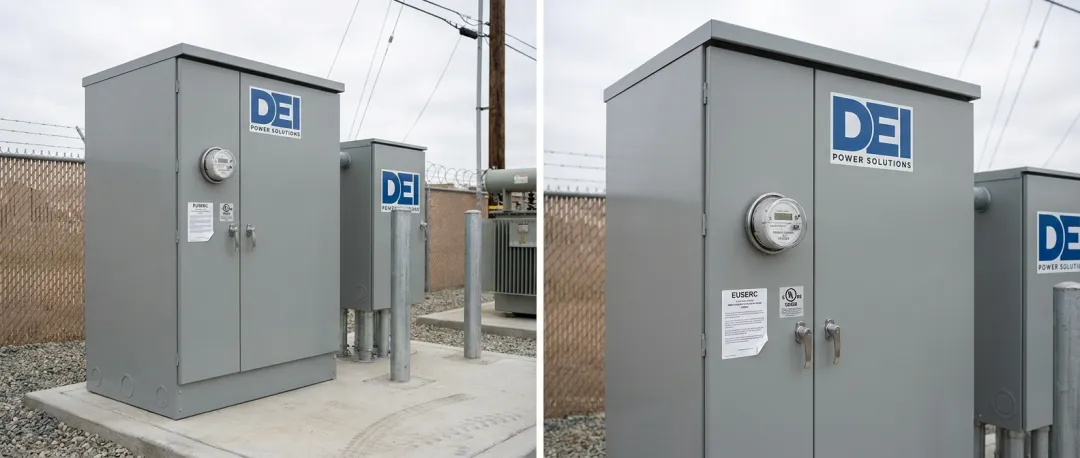

Yes. DEI Power offers 480V three-phase panels in both NEMA 1 (indoor) and NEMA 3R (outdoor, weather-resistant) enclosures across all product types including panelboards, switchboards, switchgear, and service entrance sections. NEMA 3R enclosures are rated for outdoor use, protecting against rain, sleet, and external ice formation, making them suitable for exterior utility and industrial installations.
