2500A Busbar — Aluminum 3L+N+PE

Busbar sizing is based on the maximum continuous current load, ambient temperature, material conductivity, and allowable temperature rise. For a 2500A aluminum busbar, engineers verify cross-sectional area using current density tables (typically 1–1.5 A/mm² for aluminum), confirm voltage drop compliance, and account for short-circuit withstand capacity per applicable NEC, IEC, or UL standards.

3L+N+PE indicates the busbar system carries three live phase conductors (L1, L2, L3), one neutral conductor (N), and one protective earth conductor (PE). This configuration is standard for three-phase power distribution systems in commercial and industrial facilities, ensuring balanced load distribution and safe grounding of electrical equipment.

Aluminum busbars offer a significant weight advantage over copper — roughly one-third the weight — and lower material cost, making them suitable for large-capacity installations like 2500A systems. With proper sizing to compensate for lower conductivity, aluminum busbars provide cost-effective, reliable performance in switchboards, panelboards, and service entrance assemblies.

A 2500A busbar assembly should carry UL 891 certification for low-voltage switchgear, EUSERC approval for utility interconnection, and comply with UBC, CBC, and IBC seismic zone requirements. DEI Power assemblies meet all these standards and are built by an approved Siemens OEM, ensuring full code compliance for commercial, industrial, and utility projects.

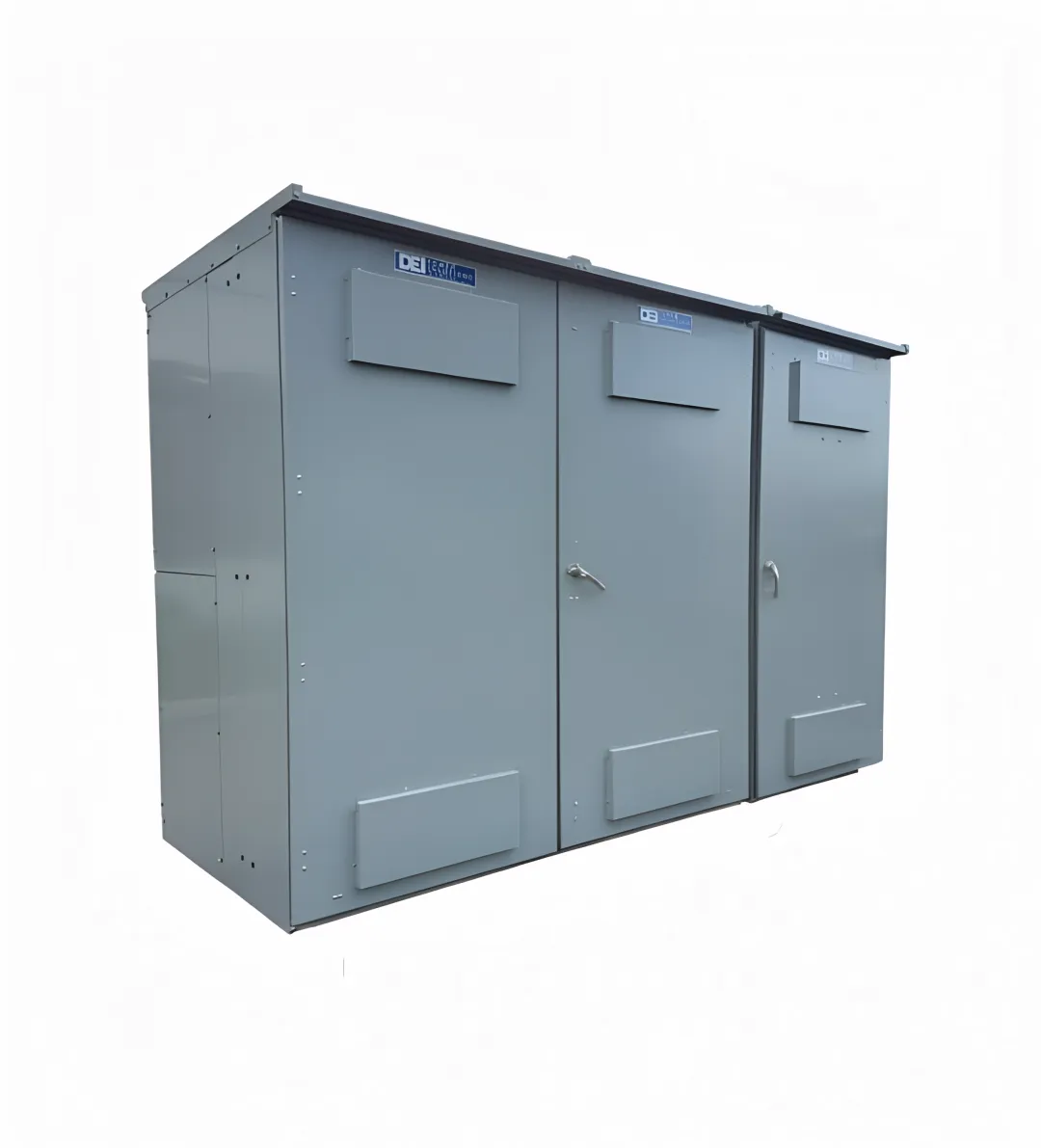

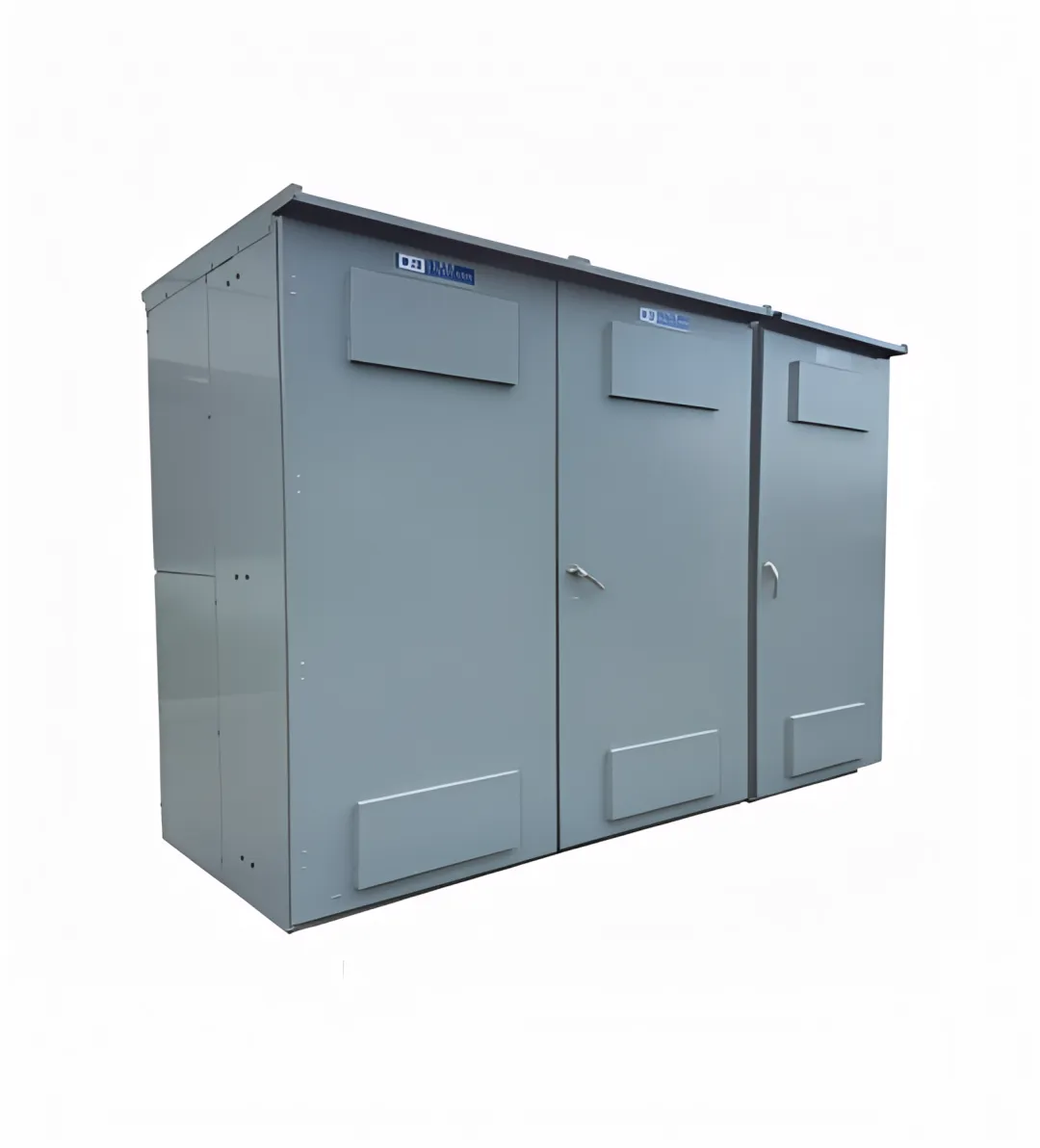

DEI Power busbar assemblies are available in NEMA 1 enclosures for indoor applications and NEMA 3R enclosures for outdoor or weather-exposed installations. NEMA 3R provides protection against rain, sleet, and ice, making it suitable for exterior utility and industrial environments where weather resistance is required alongside high-amperage power distribution.

DEI Power's 2500A busbar-based assemblies support multiple voltage configurations including 120/240V, 208Y/120V, 240V, 480V, 480Y/277V, and 415/240V. This multi-voltage flexibility enables deployment across a wide range of commercial, industrial, and utility applications without requiring custom voltage-specific infrastructure in most standard project environments.
