480 Volt 3-Phase Distribution Panels

277V is derived from a 480V 3-phase wye system by measuring the voltage between any single phase leg and the neutral (ground) conductor. In a wye configuration, the line-to-neutral voltage equals the line-to-line voltage divided by the square root of 3 (√3 ≈ 1.732). So 480V ÷ 1.732 ≈ 277V. This is why 480Y/277V panels can supply both voltages from a single system.

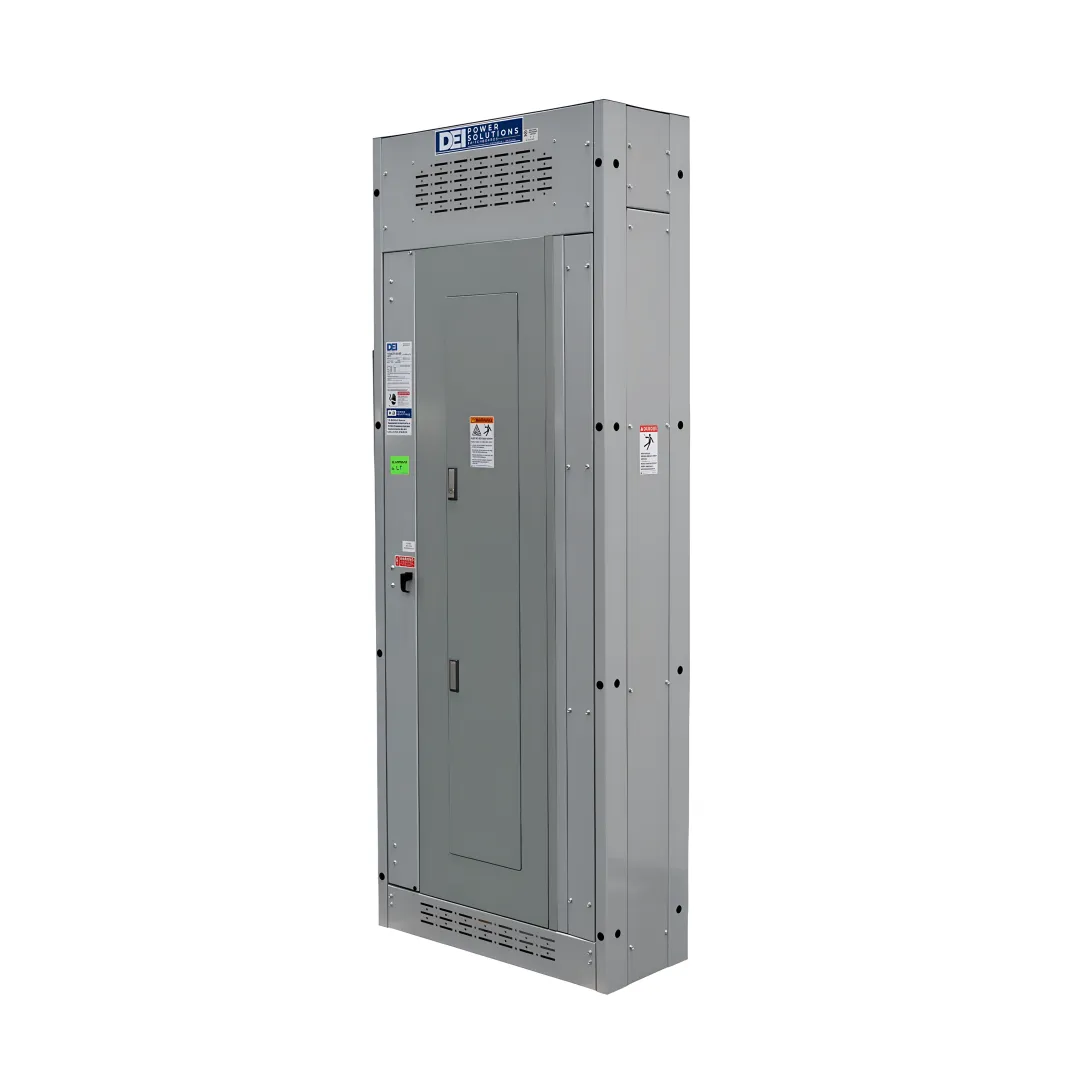

A 480/277 panel, also called a 480Y/277V distribution panel or Remote Power Panel (RPP), is a 3-phase, 4-wire electrical distribution board that delivers 480V line-to-line for large motors and equipment and 277V line-to-neutral for commercial lighting. These panels are UL 891 compliant and are widely used in data centers, commercial buildings, and industrial facilities.

DEI Power offers 480V 3-phase Remote Power Panels in ratings of 225A, 400A, 600A, 800A, 1200A, and 1600A. Each rating is available with varying numbers of branch circuits — from up to 42 circuits at 225A to up to 84 circuits at 800A and 1200A — to match the specific load demands of your facility or data center deployment.

Yes. All DEI Power 480V 3-phase distribution panels and Remote Power Panels are UL 891 compliant and built as a Siemens-approved OEM solution. They also carry EUSERC approval and are manufactured in the USA with Build America Buy America (BABA) compliance, making them suitable for federally funded and utility infrastructure projects.

In-stock 480V Remote Power Panels ship within 1 business day from DEI Power's 50,000 sq. ft. facility in Ontario, California, with job-site delivery in 3–5 business days via free shipping. Built-to-order or custom configurations carry typical lead times of 4–6 weeks. Emergency and rush orders are supported for active data center deployments and critical replacement scenarios.

Yes. Optional branch circuit monitoring is available on DEI Power's 480V 3-phase Remote Power Panels. This feature allows facility managers and data center operators to track power consumption at the individual circuit level in real time, supporting capacity planning, load balancing, and energy efficiency initiatives across data center, colocation, and mission-critical environments.
